Halo-Lit Channel Letters
A solid metal face. A soft halo behind it. Custom stainless steel letters give your customer's sign depth without illuminating the front face. Configure the artwork, dimensions and finish online, review instant pricing and purchase directly on the website.
Production & pickup
6–9 business days for standard orders with usable artwork received before 4 p.m. Pacific. Add one business day after the cutoff. Custom Pantone-C finishes can add at least three days; oversize or nonstandard fabrication may take longer. Shipping time is additional. No same-day production. Local pickup in El Monte.

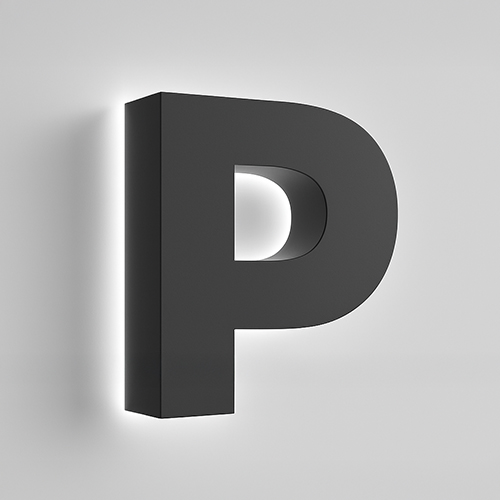

Opaque front. Illuminated back.

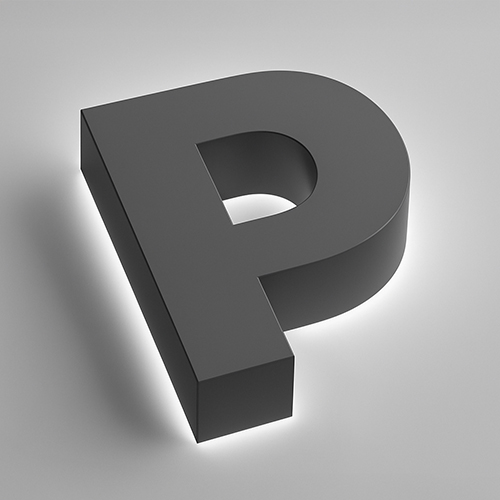

Front view
The stainless steel face and sidewalls keep light inside the housing. Painted and metallic finishes give the letter its daytime appearance.

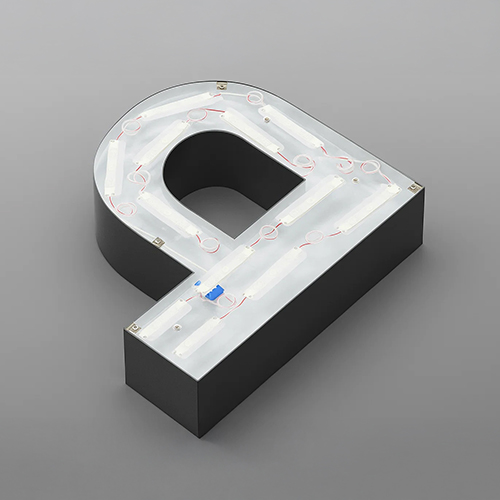

Rear illumination
LEDs shine through a clear polycarbonate back toward the mounting surface. Mounting clearance, wall color and texture determine how the halo spreads.
Choose your metal finish
The face and returns use the same metal-finish selection chart. Choose a painted color, metallic reference, brushed stainless steel or mirrored stainless steel. A custom Pantone-C finish needs review and extra production time.
Download Metal Face & Return Finish Chart (PDF)Mounting patterns and wiring diagrams accompany the configured letters. Installation accessories are separate.
*UL listing applies to qualifying complete sign sections for outdoor installation. Configurations without LEDs or a power supply do not include a UL label. Product illustrations and digital swatches are not exact color-match samples.
Components & specifications

Illustrative assembly, not to scale. Refer to the job-specific mounting pattern, wiring diagram and supplied equipment labels for installation.
| Component | Halo-lit construction |
|---|---|
| Face | Opaque stainless steel, 0.8 mm or 1 mm |
| Returns | Stainless steel, 0.8 mm or 1 mm; 2″ or 3″ depth |
| Back | 1/8″ clear polycarbonate (Lexan) |
| Illumination | Rear-facing LEDs; halo on the wall, no illuminated front face |
| Standard lead | 3 feet; extended cable options additional |
| Order documents | Mounting pattern and wiring diagram |
Stainless steel face & returns
The metal face blocks forward light; the returns form the sidewalls. Choose 0.8 mm or 1 mm stainless steel and 2″ or 3″ depth in the supported configuration. Halo-lit letters do not use an acrylic front face or plastic trim cap.
Metal colors & finishes
Use the same finish reference for the face and returns. The chart includes warm colors, blues, greens, grays, whites, metallics, brushed stainless steel and mirrored stainless steel.

Download Face Color Chart (PDF)
Download Return Color Chart · same metal finishes (PDF)
Digital samples are approximate. Metallic reflections and brushed or mirrored textures cannot be represented accurately by a flat swatch. Confirm physical samples for critical matching.
Clear back panel
A 1/8″ clear polycarbonate back allows the light to reach the wall. The installer must maintain appropriate mounting clearance and choose fixings suitable for the surface and letter weight.
Blueview LED Modules
12V DC · 160° wide-angle lighting · IP65-rated · Cool white 10,000–12,000K
Power supplies & transformer boxes
Supply reference: Fang Hua HMA-60NU-RX, 12V / 5A / 60W, Class 2. The listed supply is IP67-rated with a dry-location restriction; follow the actual equipment label and specified enclosure requirements. Five-year limited coverage applies to qualifying supplied power equipment.
Transformer-box references: 3.5″ × 5.8″ × 13.5″ for one supply, or 3.5″ × 10″ × 13.5″ for two. A qualified installer must follow the supplied wiring diagram and equipment requirements.
Installation accessories
Mounting hardware is optional and selected separately. An optional cord reference is 3-wire, 16-gauge, 8-foot, three-outlet, 120V flat plug. Confirm suitability and available options in the order configuration.
Five-year limited warranty
323 Signage covers qualifying defects in materials and workmanship for five years from shipment on the supplied stainless steel channel letters.
Before repairs
Contact us before starting any repair or warranty work. Unauthorized work voids coverage. For an eligible defect, we may repair the item or provide an equivalent replacement, which may be new or refurbished. Repair or replacement is the warranty remedy.
Receiving your shipment
Inspect the packaging and contents before accepting delivery. Photograph damage, notify the carrier and contact 323 Signage promptly. Freight damage is handled through the carrier claim process.
Exclusions
Coverage excludes acts of nature, accidental damage, vandalism, misuse and problems caused by improper installation, maintenance or care.
For help, call 323-744-6243 or email sales@323signage.com with your Project ID, photographs and a description of the issue.
Frequently asked questions
How do I get pricing and order?
Choose Start From Scratch or Upload My Artwork. Review the detected letters, dimensions, quantities and selected finishes in the online designer. Check instant pricing, save the design, enter your Project ID, add to cart and complete checkout. Open Recent Designs retrieves saved work.
How is halo-lit different from front-lit or dual-lit?
Halo-lit letters have an opaque metal face, with light directed backward onto the wall. Front-lit letters illuminate their face. Dual-lit letters illuminate the face and create a rear halo. Choose the product whose construction matches the effect you need.
What are the letter size limits?
Keep strokes at least 1″ wide. The largest standard automated-quote size is 36″ × 36″ per letter. Oversize artwork may be scaled in the designer; verify dimensions before saving. Contact us for larger work or shapes outside the automated options. Additional time and charges may apply.
What artwork should I upload?
Use outlined vector AI or PDF files for the current website uploader. Scale the artwork to the intended size, simplify unnecessary nodes and preserve openings. A bitmap inside a PDF is not vector artwork. If upload recognition fails, email the file and intended dimensions to sales@323signage.com.
Download Artwork Upload Guide (PDF)What is the production schedule?
Standard production is 6–9 business days for usable artwork and orders received before 4 p.m. Pacific. Add one business day after the cutoff, plus transit time. Custom Pantone-C finishes can add three or more days; nonstandard fabrication may need a longer schedule. Same-day production is unavailable.
How long is the standard cable?
The standard lead reference is 3 feet. Longer cable options carry additional pricing and must be selected with the order.
Can I choose a custom finish?
Choose from the metal finish chart for painted, metallic, brushed or mirrored selections. A custom Pantone-C color outside the chart needs review and additional production time. Use physical samples for critical matching.
What affects the halo?
Wall color, texture, reflectivity, mounting clearance and spacing between letters all affect the visible glow. Review the actual surface with your installer before finalizing the layout.
Where can I pick up the order?
Local pickup in El Monte: 2558 Merced Ave., El Monte, CA 91733. Coordinate pickup after the order is complete.
Manual & PDF downloads
Save these 323 Signage resources for selection, ordering and installation planning. The product guide does not replace the wiring diagram and mounting pattern supplied for your specific job.
Color and material trademarks belong to their respective owners. Charts are selection aids and do not guarantee an exact color match. Guides prepared by 323 Signage.
| Channel Letter Specifications | |
| Face | 0.8 mm or 1 mm stainless steel |
| Returns | 2-inch or 3-inch deep stainless steel, 0.8 mm or 1 mm |
| Trim Cap | Not used — solid stainless steel face |
| Back | 1/8-inch clear polycarbonate |
| LED Lighting | Mynice modules; 160°; IP67; 10000–12000K; 0.7W / 1.2W |
| Power Supply | 12V, 5A, 60W Class 2 supply; dry-location installation only |
| Included Items | LEDs, 3-foot cord, mounting pattern and wiring diagram; installation accessories separate |
| UL Listing | UL Listed sign sections for outdoor installation; raceway excluded |
| Warranty | 5 years from shipment; terms in Description |
| Production Time | Typical posted production window: 6–9 business days before 4pm Pacific cutoff; after cutoff add 1 business day. Confirm schedule with quote; custom finishes may take longer. |
| Pickup | 2558 Merced Ave., El Monte, CA 91733 — Southern California only |
