Wholesale Channel Letters — Installation-ready, LED-lit and UL Listed. Power supplies and installation patterns included.
323 Signage — Wholesale Channel Letters
Standard Channel Letters
  • Standard Channel Letters

Standard Channel Letters

Custom LED-illuminated letters with an acrylic face, trim cap and aluminum sidewalls. Configure the design online, review sizes and piece counts, see instant pricing and purchase directly on the website.

UL Listed sign sections*5-year limited warrantyPower supplies + patterns

Production & pickup

2–4 business days for standard letters and shapes between 16″ and 24″, with usable artwork and the order received by 4 p.m. Pacific. After the cutoff, add one business day. Oversize work and vinyl treatments may take longer. Same-day production is unavailable. Local pickup in El Monte.

Buying options

Front-lit R on the left; front-and-back-lit R with a wall halo on the right

Front-lit

LED light travels through the acrylic face for direct visibility.

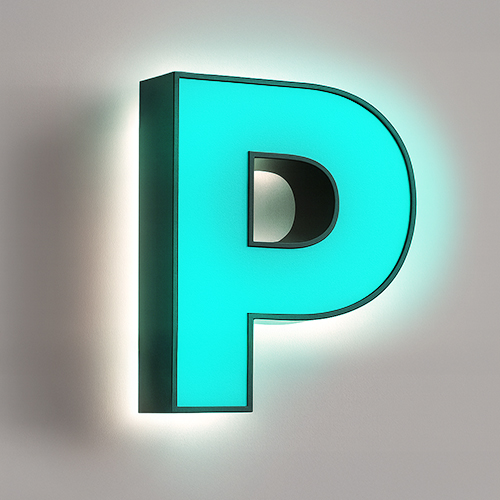

Front + back lit

An illuminated face combines with a rear halo. Wall texture, color and spacing influence the effect.

Face & material options

Five face choices: translucent vinyl, colored acrylic, day/night vinyl, white acrylic and digital print

Choose a stock colored face or apply a film to white acrylic. The day/night option uses black perforated vinyl over white acrylic: black in daylight and white when illuminated at night; printed films support multicolor artwork. For the translucent-vinyl example, the colored film is inset on white acrylic, leaving exposed white borders around the outer edges and inner openings. This border is part of the face, separate from the trim cap. Select the face, trim cap and return colors separately.

*UL listing covers qualifying complete sign sections for outdoor installation. Orders configured without LEDs or without a power supply do not include a UL label. Illustrations and digital swatches are not exact color-match samples.

Components & specifications

Exploded R construction showing acrylic face, overlapping trim cap, aluminum returns, LED modules and back panel

Illustrative assembly, not to scale. Final construction follows the configured order and supplied installation documents.

Trim cap

A molded edge secures the acrylic face and overlaps the return. 3/4″ or 1″ Jewelite trim cap; choose the cap finish with your order.

Aluminum returns

The return forms the letter sidewall. .040″ aluminum, 3″ or 4″ depth. Finish references include Gloss Black, Ultra White, Dark Bronze, Hunter Red and Heron Blue; color availability varies with depth and material supply.

Download Return Color Chart (PDF)

Acrylic face

3/16″ face material, with acrylic or polycarbonate selections. Stock references: White, Lexan White, Red, Green, Yellow and lighter Blue. A white face can receive vinyl or printed graphics.

Download Face Color Chart (PDF)

Vinyl & printed finishes

Choose 3M 3630 translucent film, 3635 day/night or blockout film, or a digitally printed face treatment using IJ8150 with 8520 matte laminate. Use the film code for color selection.

Download Vinyl Color Chart (PDF)

Included construction by lighting option

ComponentFront-litFront + back lit
Face / trim3/16″ face; 3/4″ or 1″ trim cap
Returns.040″ aluminum; 3″ or 4″ depth
BackReflective aluminum1/8″ clear polycarbonate
LightingFace illuminationFace illumination + rear halo
Order documentsMounting pattern and wiring diagram; installation accessories separate

Blueview LED Modules

12V DC · 160° wide-angle lighting · IP65-rated · Cool white 10,000–12,000K

Power supplies & enclosures

Supply reference: Fang Hua HMA-60NU-RX, 12V / 5A / 60W, Class 2, IP67-rated. Follow the equipment labels and supplied instructions for location and enclosure requirements. Transformer-box references: 3.5″ × 5.8″ × 13.5″ for one supply, or 3.5″ × 10″ × 13.5″ for two. Dry-location restrictions apply where specified by the supplied equipment.

Installation resources

Download Channel Letter Product Guide (PDF)

Five-year limited warranty

323 Signage covers qualifying defects in materials and workmanship for five years from shipment for front-lit and front-and-back-lit letters and logo shapes.

Requesting service

Contact us before any repair or warranty work. Unauthorized work voids coverage. For an eligible defect, we may repair the product or provide an equivalent replacement, which may be new or refurbished. Repair or replacement is the warranty remedy.

Shipping damage

Inspect cartons and contents before accepting delivery. Photograph any damage, notify the carrier and contact us promptly. Freight damage is handled through the carrier claim process.

Exclusions

Coverage does not include acts of nature, accidental damage, vandalism, misuse, or problems caused by improper installation, maintenance or care.

For support, call 323-744-6243 or email sales@323signage.com with your job reference, photographs and a description of the problem.

Frequently asked questions

How do I get a price and place an order?

Use Start From Scratch or Upload My Artwork, confirm dimensions, quantities and options in the designer, review instant pricing and save the design. Then add the configured job to the cart and check out online. Open Recent Designs lets you revisit saved work.

When will my order be produced?

Standard 16″–24″ letters and shapes typically take 2–4 business days when the order and usable artwork arrive before 4 p.m. Pacific. Add a business day after the cutoff. Vinyl, larger sizes and complex fabrication can extend the schedule. No same-day production.

What artwork can I upload?

Use outlined vector AI or PDF artwork, scaled to the intended dimensions. Simplify unnecessary points and preserve openings. The current website uploader accepts AI and PDF; a bitmap saved inside a PDF is not a true vector file.

Download Artwork Upload Guide (PDF)

What if my logo is complex or has narrow strokes?

The designer prices the recognized shapes and selected options. Details too narrow for returns may require an artwork adjustment and a revised price or schedule. Submit the vector file and intended dimensions for fabrication review if the upload cannot be recognized.

What are the fabrication size limits?

Reference limits: shaped letters or lightboxes up to 58.5″ × 136″; round shapes up to 48″ × 48″. Rectangular or oval layouts use the supported envelopes 48″ × 72″, 36″ × 96″, 12″ × 136″, 24″ × 136″ or 30″ × 136″. Keep strokes at least 2″ wide. Final shape feasibility must be checked in the designer and fabrication review.

Are exact color matches guaranteed?

No. Screens, printed charts, material finishes and lighting change perceived color. Use manufacturer film codes and physical samples for critical matching. Prepare printed artwork in CMYK.

Are mounting patterns and power supplies included?

Mounting patterns and wiring diagrams accompany the letters. LEDs and power supplies follow the order configuration. Installation accessories are separate. A build without LEDs or a power supply does not include a UL label.

Where is local pickup?

Local pickup in El Monte: 2558 Merced Ave., El Monte, CA 91733. Contact us to coordinate your completed order.

Manual & PDF downloads

Save these 323 Signage guides for product selection, artwork preparation and ordering. For installation, use the wiring diagram and mounting pattern supplied with your specific job.

Color charts are selection aids, not exact color-match guarantees. 3M, Scotchcal and material brand names belong to their respective owners. Guides are prepared by 323 Signage.

Channel Letter Specifications
Face 3/16-inch acrylic face
Returns 3-inch or 5-inch deep, .040-inch aluminum
Trim Cap 3/4-inch or 1-inch trim cap
Back Aluminum for front-lit; 1/8-inch clear polycarbonate for front-and-back-lit
LED Lighting Mynice modules; 160°; IP67; 9000–10500K; 0.7W / 1.2W
Power Supply 12V, 5A, 60W Class 2 supply; dry-location installation only
Included Items LEDs, 3-foot cord, mounting pattern and wiring/installation guide; installation accessories separate
UL Listing UL Listed sign sections for outdoor installation; raceway excluded
Warranty 5 years from shipment; terms in Description
Production Time 2–4 business days for qualifying orders/artwork before 4pm Pacific; after cutoff add 1 business day; large/vinyl projects may take longer; no same-day option
Pickup 2558 Merced Ave., El Monte, CA 91733 — Southern California only

Standard Channel Letters

Start From Scratch
  • $100.00

  • Ex Tax: $100.00

Available Options
